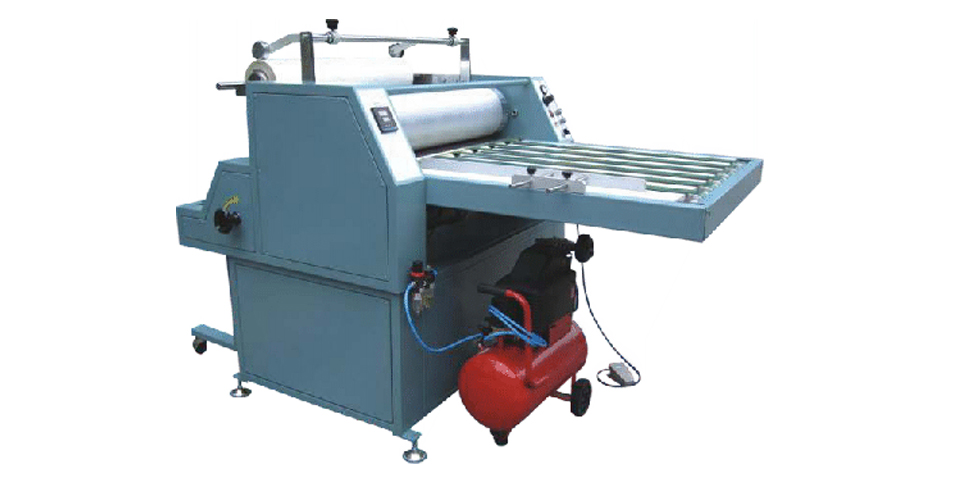

LTL series thermal laminator has big rollers and powerful pneumatic pressure which produce superb lamination results for wide range of prints.
The Salient Features are :
- Pneumatic pressure with easy adjustment
- Film Slitter
- Superb variable DC speed control
- High efficiency ultrared heating
- Cart kits for rewind
TECHNICAL SPECIFICATIONS:
MODEL | LTL-26 | LTL-32 |
Max. working width (mm) | 680 | 850 |
Max. feed speed (m/min) | 0.5-30 | 0.5-30 |
Air Requirement | 2CFM 100 PSI 0.25 | 2CFM 100 PSI 0.25 |
Laminating Temperature (0C) | 70-130 | 70-130 |
Power | AC380V 50HZ 4.8 KW | AC380V 50HZ 5.8 KW |
Dimensions (mm) | 1710x1140x1200 | 1710x1320x1200 |
Weight (kg) | 285 | 330 |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
