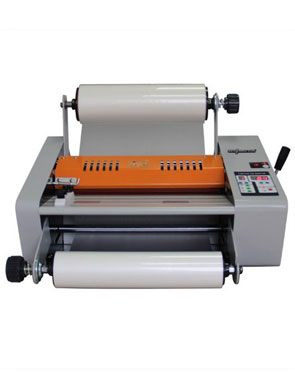

LAMINATING MACHINE
TECHNICAL SPECIFICATIONS:
| Max Lamination Width | 360mm |
|---|---|
| Max Lamination Speed | 3000mm/min |
| Max Lamination temperature | 180C |
| Max Clearance Between Top Button Rollers | 5mm |
| Recommended Film | 25-250mic |
| Warm up time | 10 min |
| Single-sided Laminating Function | YES |
| Double-Sided Laminating Function | YES |
| With a perforating Blade | NO |
| Auto Feeding Paper | NO |
| Hot Laminating | YES |
| Cold Laminating | YES |
| Heating Roller Dia | 44MM |
| Pull Roller Dia | 28.5MM |
| Electric | AC220,110V/50, 60HZ, 700W |
| Diameter of the core | 1,1.5, 3 inch |
| Packing Size | 720*630*470mm |
| GW | 34kgs |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
