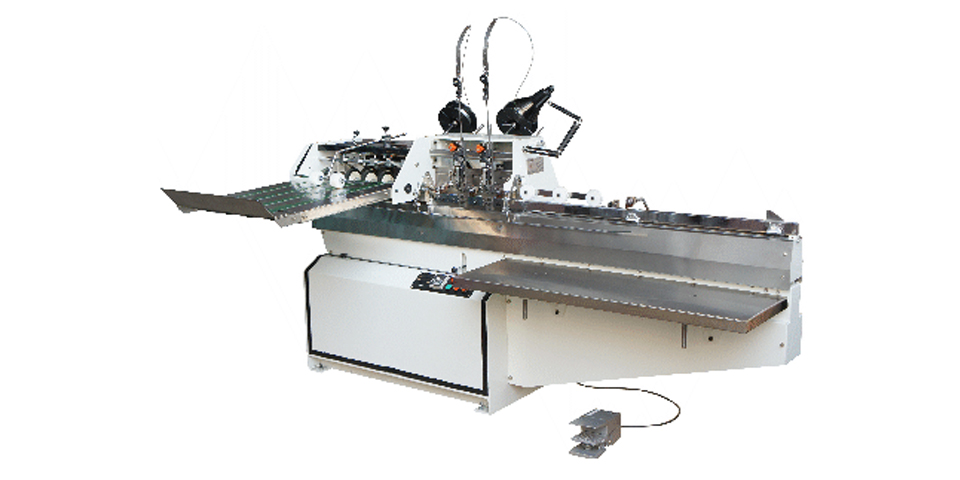

Saddle Stitcher especially designed to produce most economically both large and small volumes of booklets, pamphlets, magazines, advertising brochures notebooks etc.
The Salient Features are :
- Adjustable pinning speed of 15 to 100 cycles per minute to suit the specific needs of the job in-hand.
- These heads are adjustable from 45 to 270mm to cater to single/double-up note books/booklet etc.
- The chain conveyor device for feeding the booklets for faster production and optimum operator safety.
- The stitched booklets etc are automatically transferred to the delivery table.
- The two stitching heads (with a provision to add more heads) are standard part of the machine.
TECHNICAL SPECIFICATIONS:
MODEL | LI-2HS |
Max Booklet size | 450 x 305 mm |
Min Booklet size | 127 x 89 mm |
Stitching Head (Adjustable Gap) | 45 to 270 mm |
Stitching Crown size | 13 mm |
Stitching Capacity Min/Max | 2 to 120 sheets (4mm) |
Stitching Speed (Adjustable) | 15 to 100 c.p.m. |
Stitching Wire Gauge | 24/26 G |
Electrical Load | .75 kva /1 hp |
Electric Supply | 220-240, 50Hz |
Overall Dimensions w x d x h | 2300 x 900 x 1400cm |
Net Weight (unpacked) approx, | 380kgs. |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
