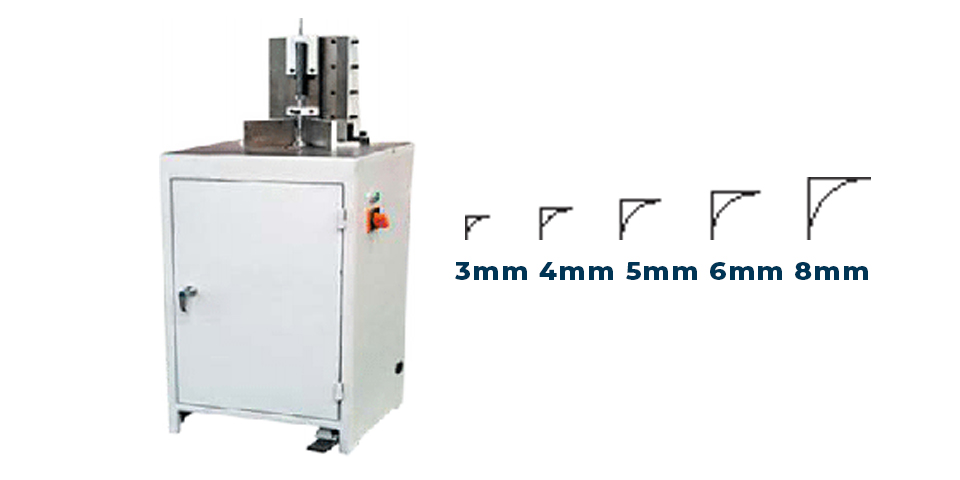

Machine is capable to cut radius of 3mm to 8mm with different tools.
TECHNICAL SPECIFICATIONS:
Model | LRC-1 |
MAX. PAPER THICKNESS | 50MM |
SPEED | 130 TIMES/MINUTS |
STROKE OF BLADE | 90 MM |
SPECIFICATION OF KNIVES | 2MM, 4MM, 6MM, 8MM |
MAIN MOTOR | 220V 50 HX 0.37 KW, 1400R/MIN |
WEIGHT OF MACHINE | 130KG |
DIMENSIONS | 420X360X1300 MM |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
