TECHNICAL SPECIFICATIONS:

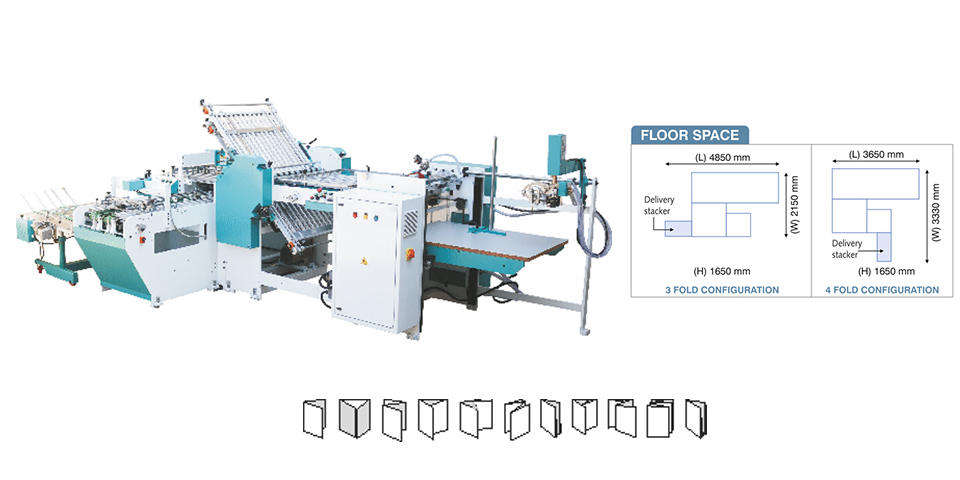

Model | LPF –Auto 63 / 4KL |
Maximum Paper Size | 635 mm (W) x 940 mm (H) |
Minimum Paper size | 220 mm (W) x 297 mm (H) |
Paper GSM | 50 to 170 GSM |
Parallel Fold | 4 |
Cross Fold | 2, Optional 3rd Cross Fold |
Feeder Mode | Automatic Rotary Suction Pile Feeder |
Pile Capacity | 600 mm |
Knives | Electronic Motorized Knives |
Knives Stroke | 10,000 / Hr |
Counter | Infrared with Batching Facility |
Center Perforation | After 1st, 2nd & 3rd Fold |
Power | 6 H.P., 3 Phase with Neutral (Stable power condition is mandatory for this machine) |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
