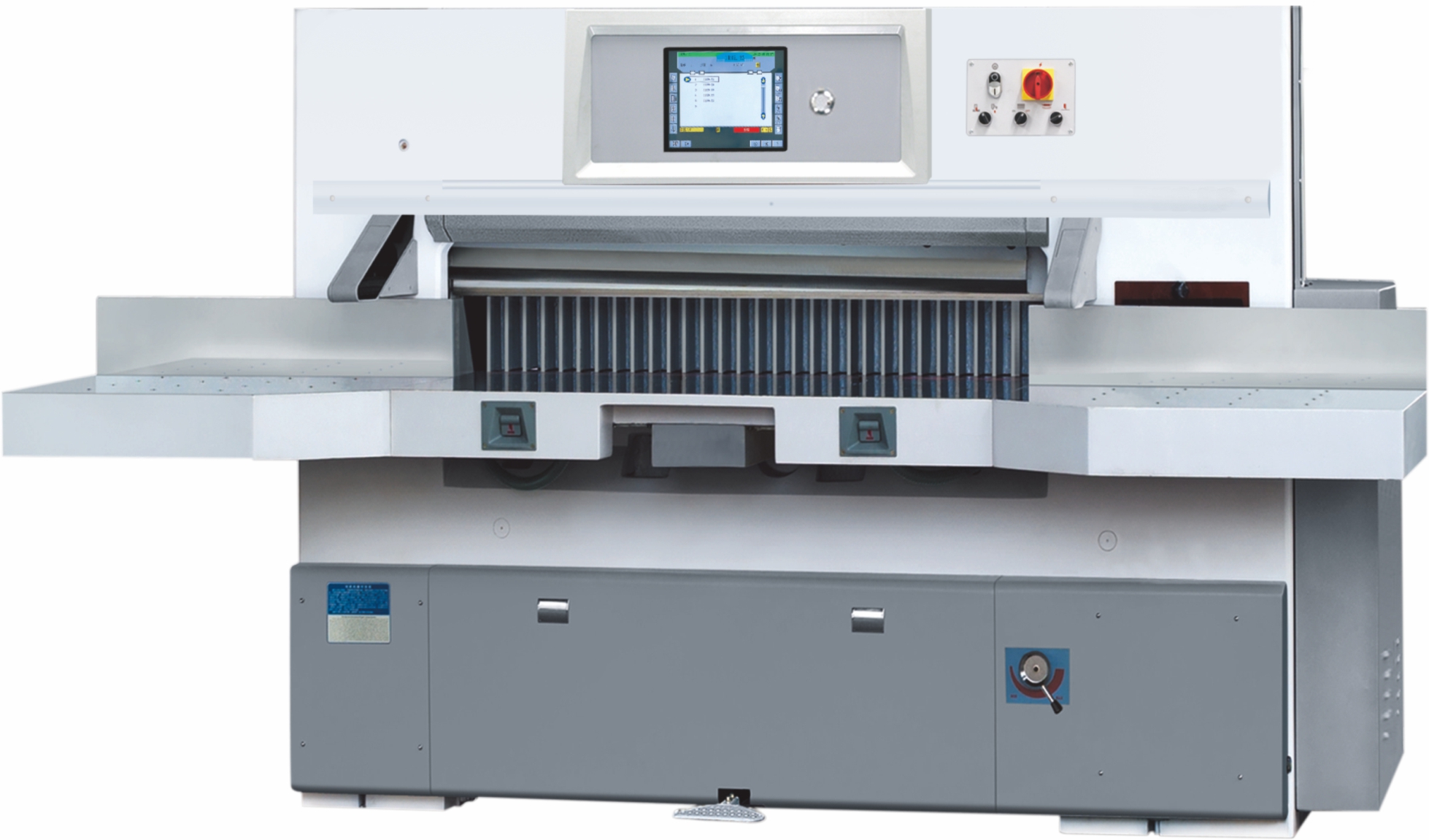

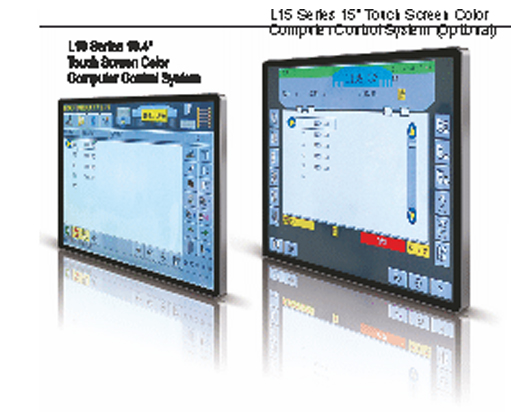

A new highly advanced programmable paper cutter with an economical price. The modern technology used on this machine accounts for its Ease of operation and maintain, efficient way it can handle routine cutting jobs. This machine is with 10.4inch computer and the computer have storage capacity of 248 cutting programs. The outstanding advantage of the lotus Programmable Cutting Machine is its simple operation.
The Salient Features are:

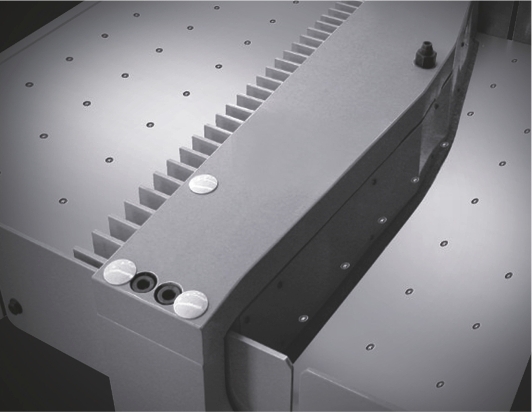

1. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000*800mm) is optional.

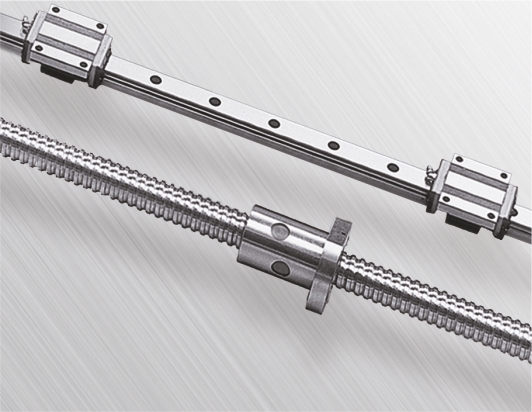

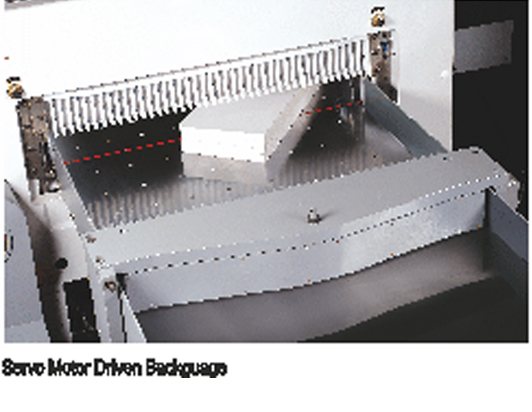

2. Ball lead screw and liner guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed greatly, prolong the service lift of paper cutter.

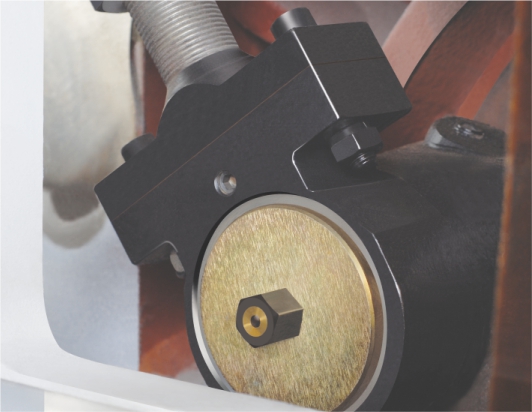

3. Safety device for knife bed, overloading protection for cutting, automating return safety device.

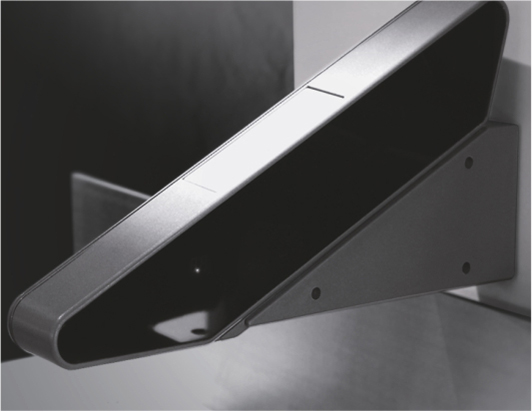

4. Infrared photoelectric protection device in line with European ce standards.

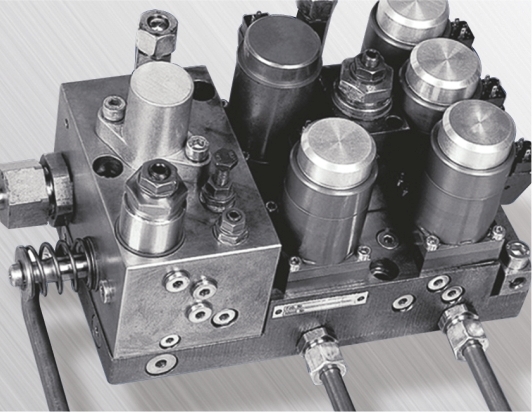

5. Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increaed system.

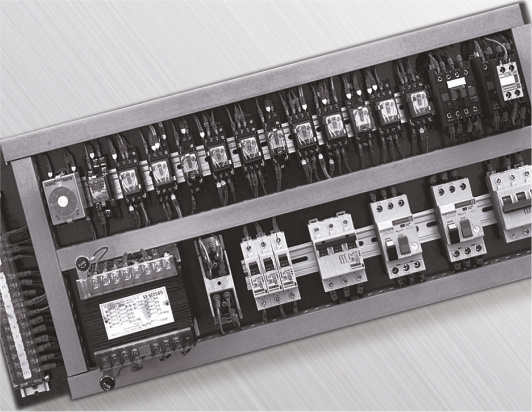

6. Imported electric components LG, OMRON, SIEMENTS

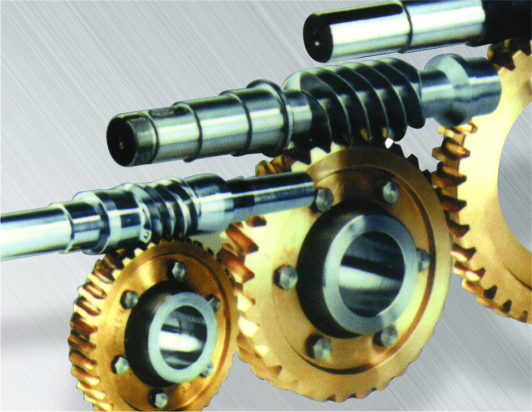

7. Heavy duty worm gearbox for knife drive.

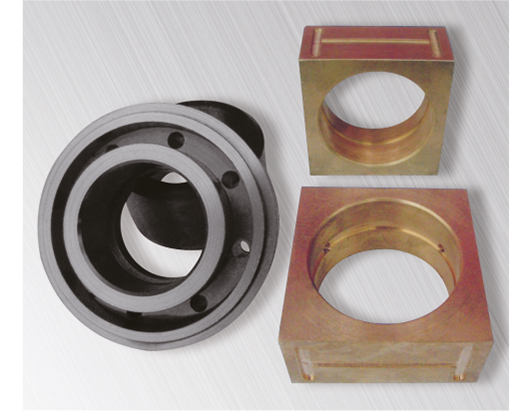

8. Imported mechanical components like NSK bearing.
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
TECHNICAL SPECIFICATIONS:
| MODEL | LPC -660 | LPC -780 | LPC -920 | LPC -1150 | LPC -1370 | LPC -1640 |
| Cutting Width (mm) | 660 | 780 | 940 | 1150 | 1370 | 1640 |
| Cutting Length (mm) | 660 | 780 | 940 | 1150 | 1370 | 1640 |
| Height (mm) | 110 | 120 | 120 | 160 | 160 | 145 |
| Front table length (mm) | 512 | 610 | 610 | 700 | 700 | 700 |
| Front table Height (mm) | 816 | 930 | 930 | 930 | 930 | 930 |
| Power consumption of Main Motor (kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 |
| Max. Clamping Pressure (dan) | 3500 | 3000 | 3500 | 5000 | 5000 | 5500 |
| Cutting speed (times/min) | 42 | 42 | 42 | 42 | 42 | 42 |
| Net Weight (kg) | 1350 | 2100 | 2500 | 3800 | 4500 | 6500 |
| Gross Weight (kg) | 1500 | 2300 | 2700 | 4000 | 4700 | 6700 |
| Overall Dimensions – L × W × H (m) | 1.85 × 1.55 × 1.6 | 2 × 2.1 × 1.5 | 2.3 × 2.3 × 1.5 | 2.5 × 2.7 × 1.6 | 2.8 × 3.2 × 1.7 | 3 × 3.2 × 1.7 |
| Packing size – L × W × H (m) | 1.9 × 1.6 × 1.6 | 2.4 × 1.5 × 1.7 | 2.4 × 1.42 × 1.7 | 2.65 × 1.42 × 1.9 | 2.5 × 1.6 × 2 | 3.15 × 1.4 × 2 |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
