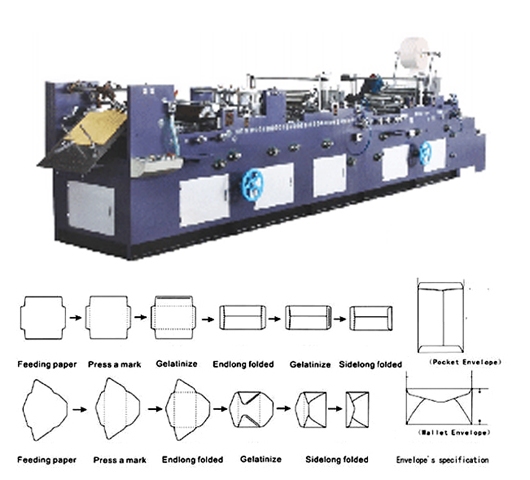

Automatic Envelope Making Machine With Self-Adhesive Peel.
The new generation of multi-functional envelope forming machine is provided with an additional function: envelope flap tape sticking for such adopt the foreign advanced technology. Its gluing system can stop gluing automatically when the machine is short of paper during running; also it�s provide with a finished product counter and an automatic rotary delivery unit, It�s featured by stable performance as well as fast and accurate debugging during mass production.
Reliable sheet separation of the air-suction bottom feeding system with automatic feeding of non-stop operation of the equipment; easy regulation of the positioning structure of the paper with accurate positioning; ensuring the precision of finished products regarding the parts of vertical and cross creasing under the high-speed running of the machine; rotary sizing applicable for any forms of glue lines; provided with the folder for the suction roller for the stable production in a high-speed state; visible and accurate regulation of the dial under the condition of fine adjustment; mounted with electric counter and automatic delivery unit on the collecting part.
TECHNICAL SPECIFICATIONS:
MODEL | LI-508A |
Max. size of finished product | 324x229mm (American style) |
380x280mm (pocket style) | |
Min. size of finished product | 85x85mm |
Paper gram | 70-150 g/m2 |
Max. working speed | 3000-9000 pcs/h |
Total machine power | 8 kw |
Weight of machine | 3000kg |
Dimension | 6200x1200x1300mm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
