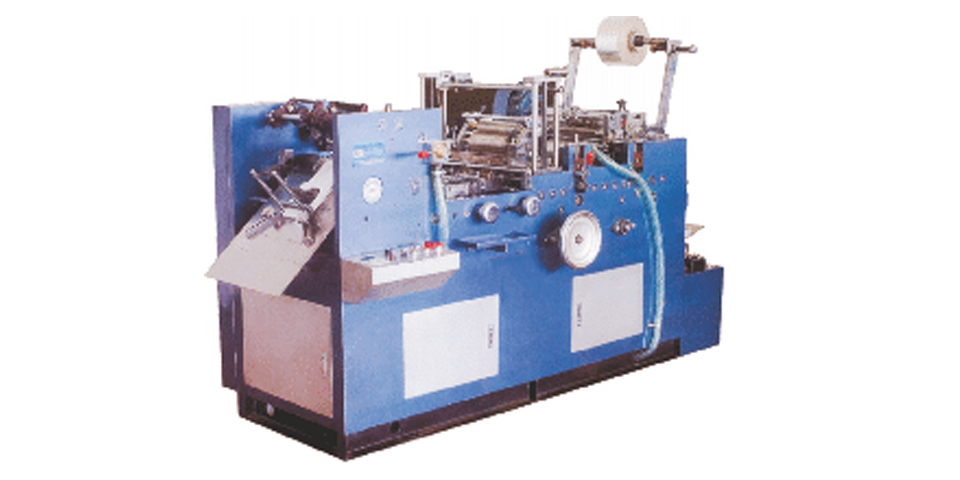

The machine is mainly used for film sticking of the ground paper of windowing envelopes, VCD and non-standers specifications. The knife holder for film sticking adopts the advance foreign technology with precise and stable die cutting. The air-suction bottom feeding system ensuring the automatic feeding of non-stop operation of the equipment; stable and reliable air separator with accurate positioning of the pin removal; rotary automatic sizing unit ensuring the uniform glue spread; adopting the automatic gear shifting to adjust the length of the film and high-speed and accurate automatic film sticking unit, easy for operation, stable and reliable during the production. It is a kind of leading domestic equipment special for film sticking of windowing ground paper at present
TECHNICAL SPECIFICATIONS:
MODEL | LI-385 | LI-395 |
Applicable sheet gram | 70-150g/m2 | 70-150g/m2 |
Working speed | 3000-13000pcs/h | 3000-13000pcs/h |
Maximum size of raw paper | 380X370mm | 420X560mm |
Minimum size of raw paper | 100X100mm | 120X120mm |
Total machine power | 4.5kw | 5.2kw |
Machine weight | 1300kg | 1500kg |
Machine dimension | 2300x750x1145mm | 2500x900x1200mm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
