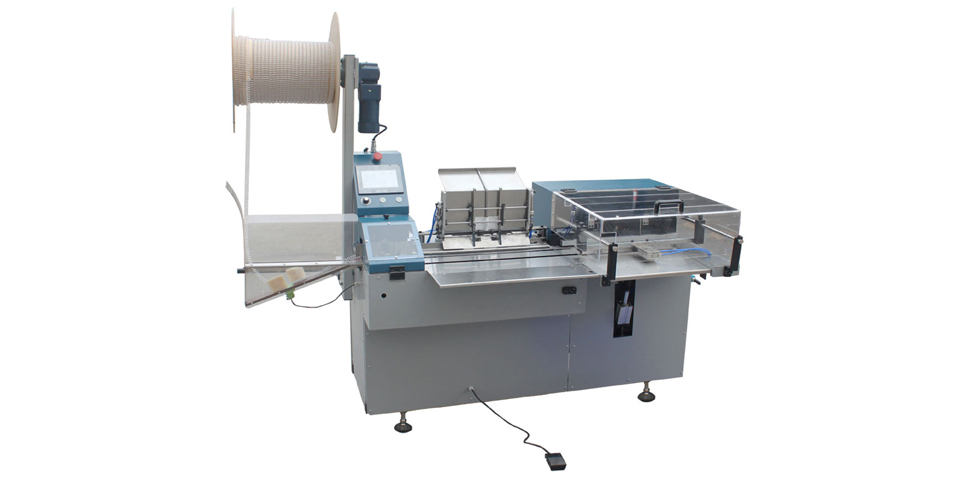

LWB-420 semi automatic binding machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. it can bind from size 1/4" to 1+1/4" without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the production efficiency and lowers the cost remarkably.
The Salient Features are :
- No need to charge the binding tools as the binding height is adjustable for all the sizes from 1 /4 ‘’-1+1/4’’
- It can be used to bind books or calendars with overhanging cover.
- Option for calendar hanger feeder system and conveyor.
- Controlled by computer, easy to setup.
TECHNICAL SPECIFICATIONS:
| MODEL | LWB -420 |
MAX BINDING SIZE | 420×420mm |
MIN BINDING SIZE | 70×100mm |
WIRE BINDING CAPACITY | 1 /4 ‘’-1+1/4’’ |
BINDING THICKNESS CAPACITY | 1.5mm-27mm |
BINDING SPEED | 600-1100books/hour |
POWER | AC220V/1PH/50(60)HZ |
MACHINE WEIGHT | 255KG |
MAX HANGER LENGTH | 380mm |
COMPRESSED AIR PRESSURE | 6-8bar |
DIMENSION | 2220mm×1000mm×1800mm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
