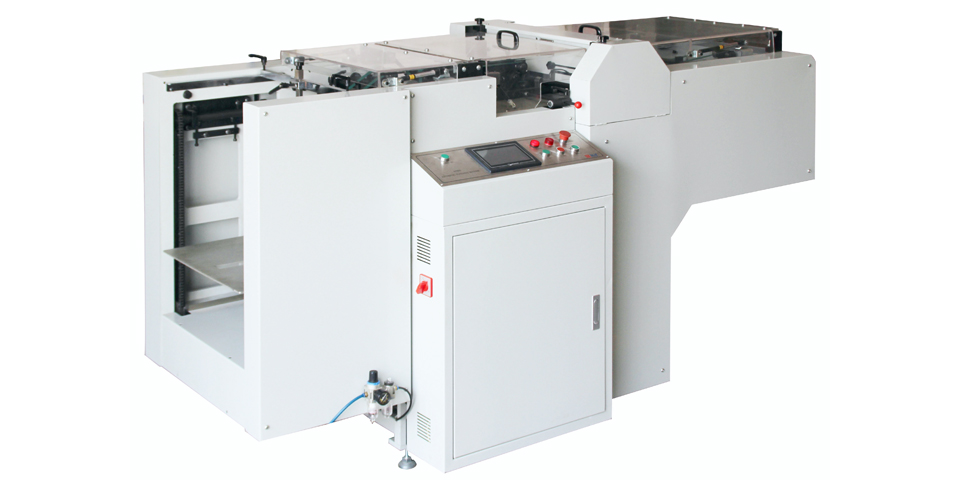

LWB-400 is specially used for punching papers of calendar and notebooks, the max thickness it punch can up to 1.5mm, the max speed up to 120 strokes/min. It can punch 5 tons A4 paper per day averagely, the production efficiency is 3 times than labor.
The Salient Features are :
- High-speed automatic punching machine up to 120 per minute.
- Can punch all kinds of shapes and sizes of the hole
- Punching margin from the edge: adjustable as customers requirements
- Paper thickness from 60gsm to 220gms
- Two discharge options: high pile reception unit or a conveyor
TECHNICAL SPECIFICATIONS:
MODEL | LAP -400 |
Maximum Paper Size | 420×420mm |
Min. Paper Size | 140×120mm |
Maximum Paper Thickness | 2mm(standard: 105mm) |
Maximum Cycle Speed | 120 strokes/min. |
Power Supply | 380v/3ph/50hz/3kw |
Dimensions | With high pile reception unit 2200×1000×1300mm/ |
| With Conveyor 2200×1600×1300mm |
Net Weight | 720 kgs |
Air Compressor | Optional |
Compressed Air Pressure | 3-6 bar |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
