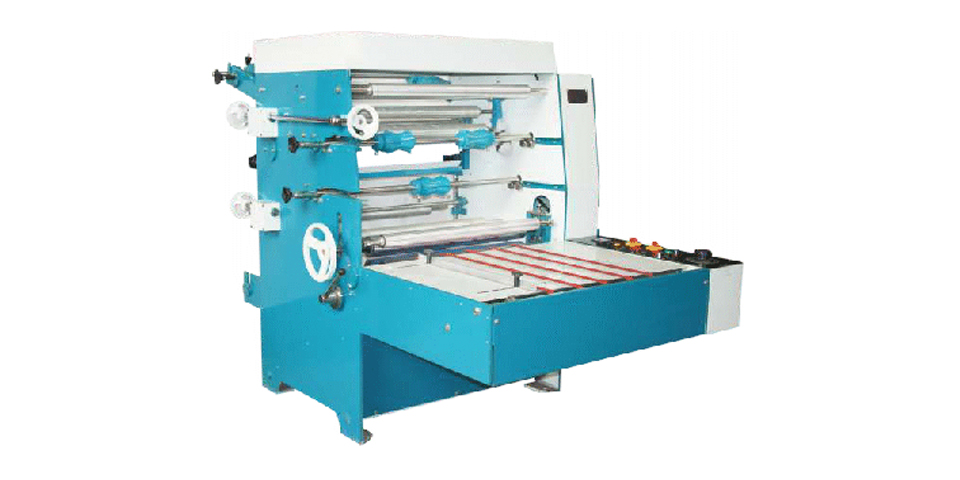

LLM Series laminator using non-toxic water based glue as adhesive to laminate, overall cost is lowest compare to existing method of lamination.
The Salient Features are :
- Dissolving printing powder and snowy points.
- Superb variable DC speed control
- Film slitting system provided with the machine.
- Window-attachement can be provided with the machine against extra cost.
TECHNICAL SPECIFICATIONS:
MODEL | LLM-26 | LLM-32 | LLM-40 |
Max. working width (m/min) | 680 | 810 | 1070 |
Max. feed speed (m/min) | 1-40 | 1-40 | 1-40 |
Power | AC 220V 1.75 KW | AC220V 2.25 KW | AC220V 3 KW |
Dimensions (mm) | 2080X1260X1380 | 2080X1420X1380 | 2080X1620X1380 |
Weight (kg) | 650 | 800 | 950 |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
